Dished Ends
Dished Ends Types, We make.
Ellipsoidal
10% Torishperical
Crown

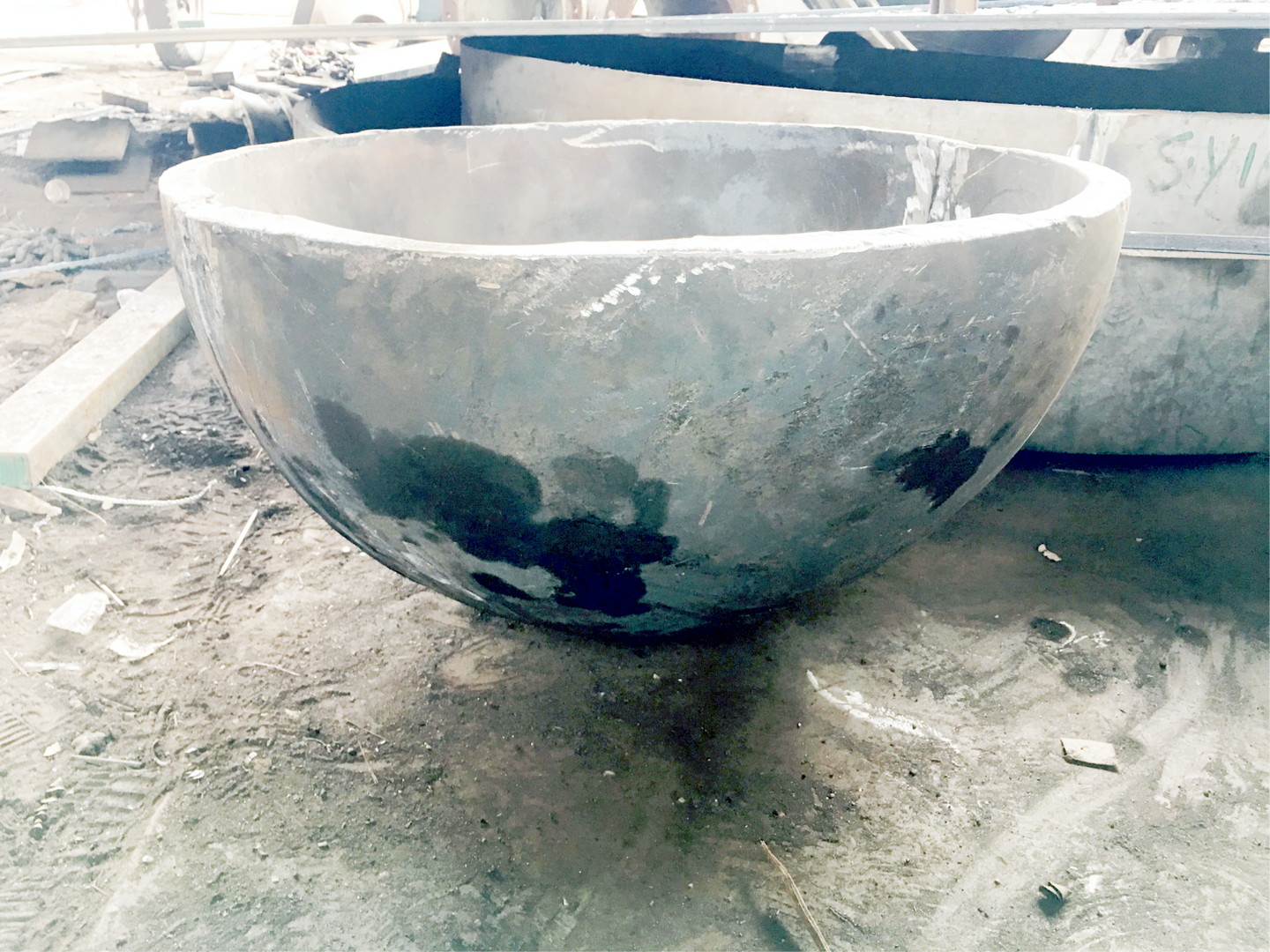

Hemispherical
Crown & Petals
Flat Flnaged
Expansion Joint
Cone Knuckle/ Tori Cone
Pipe Caps
Pipe Caps/ Die punched Dished ends
We keep stock of MS pipe caps.
| Sr. No. | SIZE NB | OD mm | Thk. mm | B.D. mm. | DEEP mm | Weight Kg |
Sr. No. | SIZE NB | OD mm | Thk. mm | B.D. mm. | DEEP mm | Weight Kg |
||
| 1 | 1" | 34 | 3 | 45 | 0.037 | 43 | 14" | 356 | 10 | 470 | 125 | 13.619 | |||
| 2 | 1.5" | 48 | 5 | 75 | 26 | 44 | 15" | 392 | 3 | 490 | 112 | 4.441 | |||
| 3 | 2" | 60 | 5 | 85 | 27 | 0.223 | 45 | 16" | 406 | 4 | 520 | 110 | 6.668 | ||
| 4 | 2" | 60 | 6 | 95 | 27 | 0.334 | 46 | 16" | 406 | 5 | 520 | 110 | 8.336 | ||
| 5 | 2.5" | 76 | 3 | 102 | 27 | 0.192 | 47 | 16" | 406 | 6 | 520 | 125 | 10.003 | ||
| 6 | 2.5" | 76 | 5 | 102 | 27 | 0.321 | 48 | 16" | 406 | 8 | 520 | 120 | 13.337 | ||
| 7 | 3" | 89 | 3 | 124 | 36 | 0.284 | 49 | 16" | 406 | 10 | 520 | 125 | 16.671 | ||
| 8 | 3" | 89 | 6 | 124 | 36 | 0.569 | 50 | 18" | 457 | 3 | 575 | 135 | 6.115 | ||
| 9 | 4" | 114 | 4 | 160 | 47 | 0.631 | 51 | 18" | 457 | 4 | 575 | 135 | 8.154 | ||
| 10 | 4" | 114 | 5 | 160 | 47 | 0.789 | 52 | 18" | 457 | 5 | 575 | 132 | 10.192 | ||
| 11 | 4" | 114 | 6 | 160 | 47 | 0.947 | 53 | 18" | 457 | 6 | 575 | 132 | 12.231 | ||
| 12 | 4" | 114 | 8 | 180 | 55 | 1.598 | 54 | 18" | 457 | 8 | 575 | 132 | 16.307 | ||
| 13 | 5" | 141 | 3 | 180 | 45 | 0.599 | 55 | 18" | 457 | 10 | 575 | 135 | 20.384 | ||
| 14 | 5" | 141 | 4 | 180 | 45 | 0.799 | 56 | 20" | 508 | 3 | 630 | 135 | 7.341 | ||
| 15 | 5" | 141 | 5 | 180 | 45 | 0.999 | 57 | 20" | 508 | 4 | 630 | 135 | 9.788 | ||
| 16 | 5" | 141 | 6 | 180 | 45 | 1.199 | 58 | 20" | 508 | 5 | 630 | 135 | 12.235 | ||
| 17 | 6" | 167 | 3 | 220 | 62 | 0.895 | 59 | 20" | 508 | 6 | 630 | 130 | 14.682 | ||
| 18 | 6" | 167 | 4 | 220 | 62 | 1.194 | 60 | 20" | 508 | 8 | 630 | 130 | 19.576 | ||
| 19 | 6" | 167 | 5 | 220 | 62 | 1.492 | 61 | 20" | 508 | 10 | 630 | 130 | 24.470 | ||
| 20 | 6" | 167 | 6 | 220 | 57 | 1.790 | 62 | 22" | 559 | 5 | 675 | 125 | 14.045 | ||
| 21 | 6" | 167 | 8 | 220 | 62 | 2.387 | 63 | 24" | 610 | 6 | 762 | 170 | 21.479 | ||
| 22 | 6" | 167 | 10 | 220 | 57 | 2.984 | 64 | 24" | 610 | 12 | 770 | 170 | 43.865 | ||
| 23 | 8" | 219 | 4 | 290 | 72 | 2.074 | 65 | 24" | 610 | 14 | 770 | 170 | 51.176 | ||
| 24 | 8" | 219 | 5 | 290 | 72 | 2.593 | |||||||||
| 25 | 8" | 219 | 6 | 290 | 76 | 3.111 | |||||||||
| 26 | 8" | 219 | 8 | 290 | 74 | 4.148 | |||||||||
| 27 | 8" | 219 | 10 | 310 | 74 | 5.925 | |||||||||
| 28 | 10" | 273 | 3 | 350 | 85 | 2.266 | |||||||||
| 29 | 10" | 273 | 4 | 350 | 85 | 3.021 | |||||||||
| 30 | 10" | 273 | 5 | 350 | 85 | 3.776 | |||||||||
| 31 | 10" | 273 | 6 | 350 | 90 | 4.532 | |||||||||
| 32 | 10" | 273 | 8 | 350 | 80 | 6.042 | SPECIAL | ||||||||
| 33 | 12" | 324 | 3 | 418 | 100 | 3.232 | 1 | 8" OD | 203 | 3 | 244 | 1.101 | |||
| 34 | 12" | 324 | 4 | 418 | 100 | 4.309 | 2 | 12" ID | 310 | 5 | 454 | 135 | 6.354 | ||
| 35 | 12" | 324 | 5 | 418 | 100 | 5.386 | 3 | 6" NB | 167 | 6 | 210 | 1.631 | |||
| 36 | 12" | 324 | 6 | 418 | 100 | 6.463 | 4 | 8" NB | 219 | 6 | 266 | 2.617 | |||
| 37 | 12" | 324 | 8 | 418 | 100 | 8.618 | 5 | 12"NB | 324 | 8 | 392 | 7.579 | |||
| 38 | 12" | 324 | 10 | 418 | 110 | 10.772 | 6 | 16"NB | 406 | 8 | 485 | 11.602 | |||
| 39 | 12" | 324 | 12 | 440 | 110 | 14.323 | 7 | 364 | 6 | 478 | 8.452 | ||||
| 40 | 14" | 356 | 5 | 470 | 6.810 | 8 | 2" NB | 61 | 5 | 95 | 0.278 | ||||
| 41 | 14" | 356 | 6 | 470 | 115 | 8.172 | 9 | 8" NB | 220 | 4 | 270 | 1.79782 | |||
| 42 | 14" | 356 | 8 | 470 | 125 | 10.895 | 10 | 5" | 10 | 180 | 1.99758 | ||||
